LASER BEAM PROFILER
Acquisition and evaluation of laser beam profiles according to current ISO standards using CMOS and CCD cameras. In order to comply with the wide range of specific requirements concerning laser beam parameters (wavelength, beam size, power, repetition rate) a broad selection of different camera types is available, providing the straightforward realization of customer-specific solutions.
All cameras can be easily connected to PC or notebook via USB or GigE interface (Plug&Play).
Specifications of available cameras utilized for laser beam analysis:
|
Sensors |
CMOS, CCD |
|
Spectral range |
(Soft) x-ray / (extreme) UV / VIS / NIR |
|
Active area |
Up to 36 mm x 24 mm |
|
Pixel counts |
Up to 16 MPixel |
|
Spatial resolution |
> several µm |
|
Dynamic range |
12 bit - 16 bit |
|
Notebook/PC connection |
USB3.0, USB2.0 or GigE |
Special customized developments on request
Analysis of the acquired beam profiles is carried out with the beam analysis software „MrBeam“ developed at Laser-Laboratorium Göttingen e.V. Due to long-time cooperation within standardization committees this code accomplishes comprehensive beam characterization in accordance with current ISO standards.

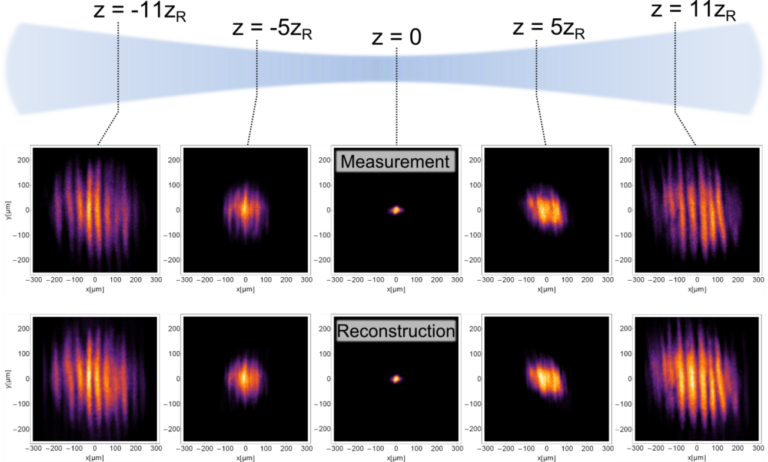

CAUSTIC TEST SITE
Measurement of laser beam propagation parameters according to ISO 11146
- M2
- Divergence
- Waist position and diameter
- Rayleigh length
